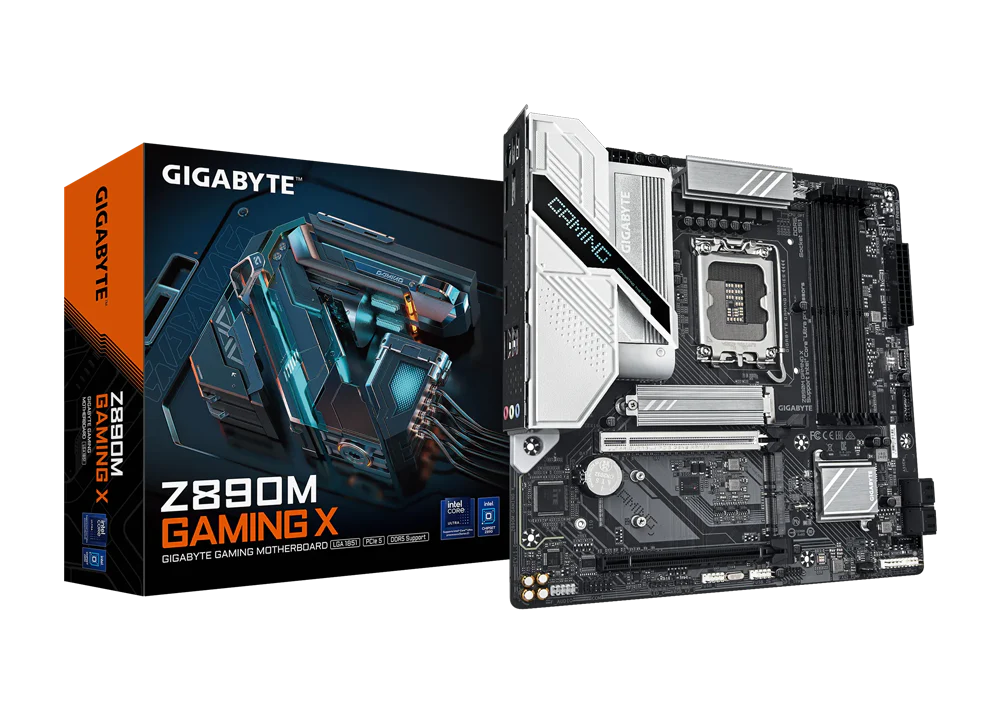

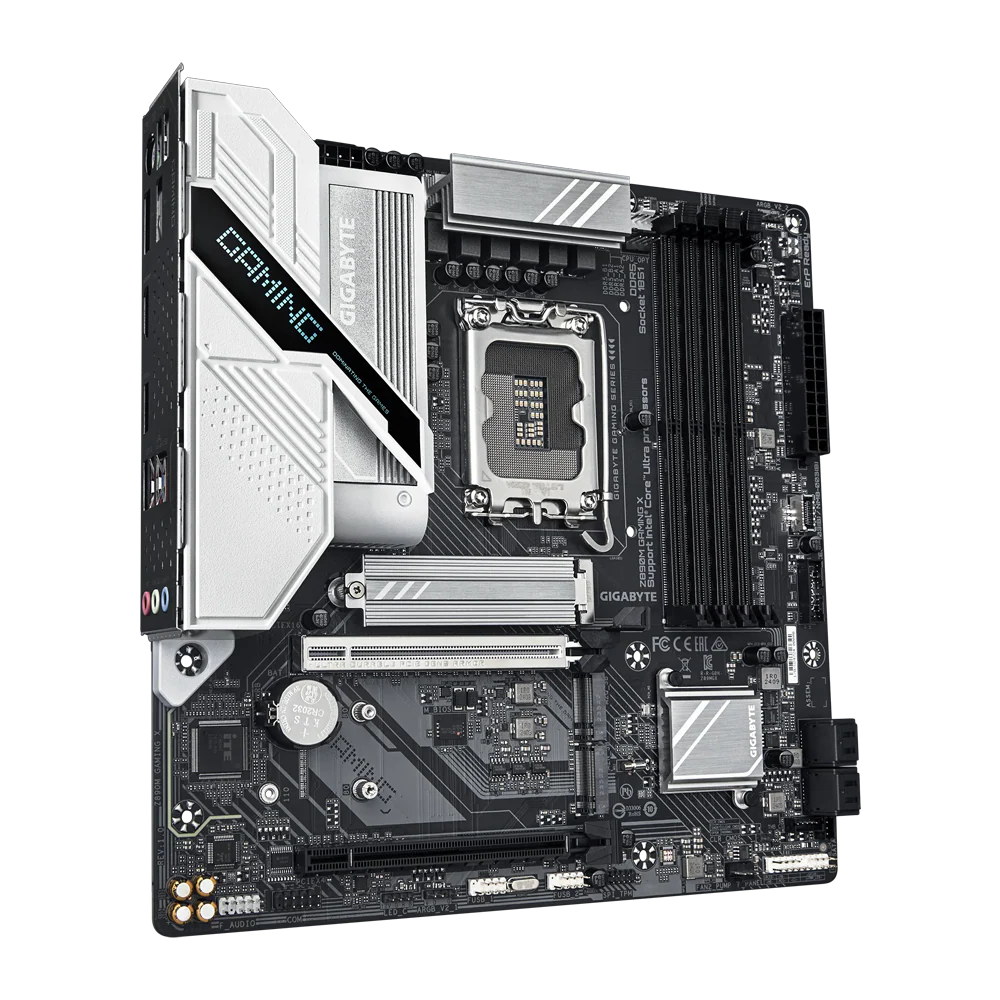

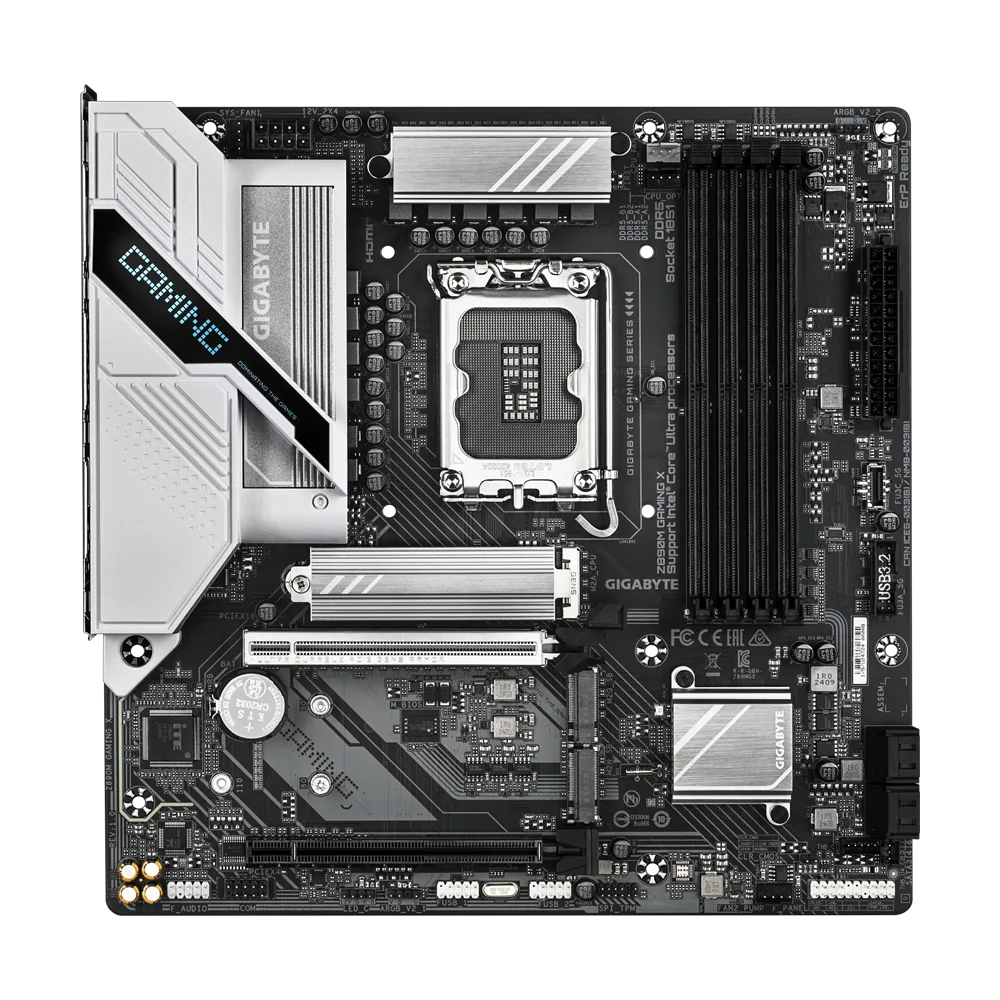

GIGABYTE Z890M GAMING X 1.0 DDR5 Motherboard - Black

The GIGABYTE Z890M GAMING X DDR5 motherboard is engineered to support Intel Core Ultra processors through the LGA1851 socket while delivering stable power and fast memory capability for gaming and productivity systems.
It supports DDR5 memory up to very high overclocked frequencies and integrates advanced VRM power delivery for consistent CPU performance under load.
PCIe 5.0 expansion, multiple M.2 storage options, and 2.5Gb Ethernet connectivity ensure high-speed data handling for modern gaming builds.
Advanced thermal armor and heatsinks maintain stable operating temperatures during extended workloads.
Integrated BIOS optimization tools, RGB control, and system monitoring software allow precise tuning and customization, making this motherboard suitable for performance-focused PC builds.

Key Features

• Intel Z890 chipset motherboard
• LGA1851 socket for Intel Core Ultra processors
• DDR5 memory support up to high OC speeds
• PCIe 5.0 graphics expansion slot
• Multiple M.2 NVMe SSD slots
• Advanced VRM power delivery design
• 2.5Gb Ethernet fast networking
• Integrated RGB lighting control
• Comprehensive thermal cooling design
• Micro-ATX form factor

Detailed Technical Specifications

• Model
  GIGABYTE Z890M GAMING X DDR5

• Chipset
  Intel Z890 Express

• CPU Support
  LGA1851 socket
  Supports Intel Core Ultra processors

• Memory
  4 × DDR5 DIMM slots
  Maximum capacity 256GB
  Dual channel architecture
  Supports XMP memory profiles
  Supports ECC and non-ECC DDR5 modules
  Frequencies up to 9200MT/s OC

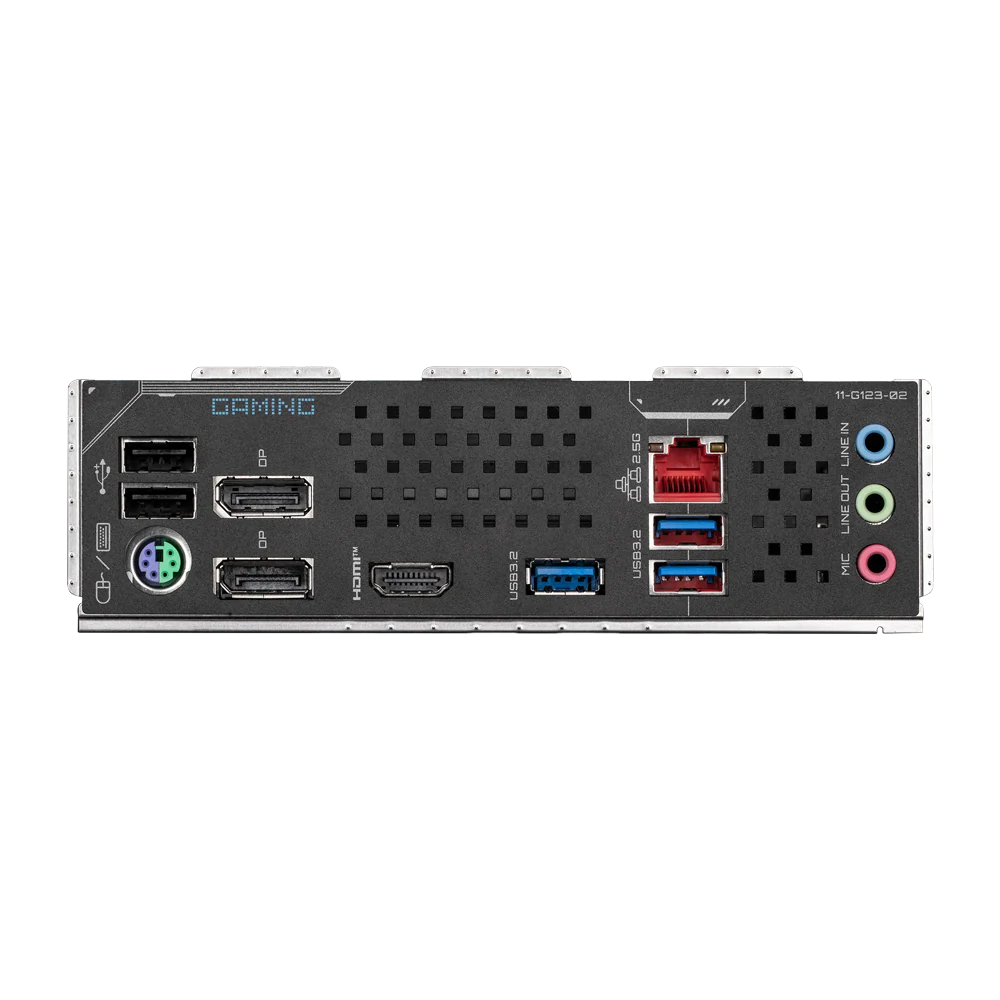

• Graphics Output
  1 × HDMI up to 4096×2160 at 60Hz
  2 × DisplayPort up to 4096×2304 at 60Hz
  Triple display support depending on CPU

• Expansion Slots
  1 × PCIe 5.0 x16 slot
  1 × PCIe 4.0 x16 slot running at x4

• Storage Interface
  1 × M.2 PCIe 5.0 slot
  2 × M.2 PCIe 4.0 slots
  4 × SATA 6Gb/s ports
  RAID support for NVMe and SATA drives

• Networking
  Realtek 2.5Gb Ethernet LAN

• Audio
  Realtek High Definition Audio codec
  Supports multi-channel audio

• USB Connectivity
  USB Type-C internal header
  Multiple USB 3.2 Gen1 ports
  Additional USB 2.0 ports

• Internal Connectors
  CPU fan header
  Pump header for liquid cooling
  System fan headers
  RGB and ARGB headers
  Thunderbolt add-in card connectors

• Cooling Design
  Full metal heatsinks
  VRM thermal armor
  M.2 thermal guard

• BIOS Features
  AMI UEFI BIOS
  Q-Flash support
  Smart Backup support

• Software Support
  GIGABYTE Control Center
  RGB Fusion lighting control
  LAN bandwidth management software

• Operating System Support
  Windows 11 64-bit
  Windows 10 64-bit

• Form Factor
  Micro ATX
  Dimensions 24.4 × 24.4 cm
